HPC Fire Penta FPPK Push Button Flame Sensing Gas Fire Pit Kit with Round Bowl Pan and Torpedo Burner
  • HPC Fire Penta FPPK Push Button Flame Sensing Gas Fire Pit Kit with Round Bowl Pan and Torpedo Burner
  • HPC Fire Penta FPPK Push Button Flame Sensing Gas Fire Pit Kit with Round Bowl Pan and Torpedo Burner
  • HPC Fire Penta FPPK Push Button Flame Sensing Gas Fire Pit Kit with Round Bowl Pan and Torpedo Burner
  • HPC Fire Penta FPPK Push Button Flame Sensing Gas Fire Pit Kit with Round Bowl Pan and Torpedo Burner
  • HPC Fire Penta FPPK Push Button Flame Sensing Gas Fire Pit Kit with Round Bowl Pan and Torpedo Burner
  • HPC Fire Penta FPPK Push Button Flame Sensing Gas Fire Pit Kit with Round Bowl Pan and Torpedo Burner
HPC Fire Penta FPPK Push Button Flame Sensing Gas Fire Pit Kit with Round Bowl Pan and Torpedo Burner

HPC Fire
$1,897.56

HPC Fire Penta FPPK Push Button Flame Sensing Gas Fire Pit Kit with Round Bowl Pan and Torpedo Burner
SKU: TOR-PENTA19FPPK-FLEX-LP
Fuel Type:Propane Gas for Bulk Tank
Free Shipping!
Usually Ships in 2-3 Business Days

Price:
$1,897.56
view full details

Optional Accessories:
Description Specifications What to Consider Downloads
Product Features
  • Stainless Steel Construction - Heavy duty 304 stainless steel burner & pan ensures a long lasting product
  • Spark Ignition Pilot Assembly - Simple battery powered push button ignites the flame using a pilot light and thermocouple
  • Flame Sensor - Automatic flame sensor detects the pilot light and closes the gas line if the flames are extinguished
  • CSA Certified - Ensuring the highest quality and safety for outdoor gas fire pits

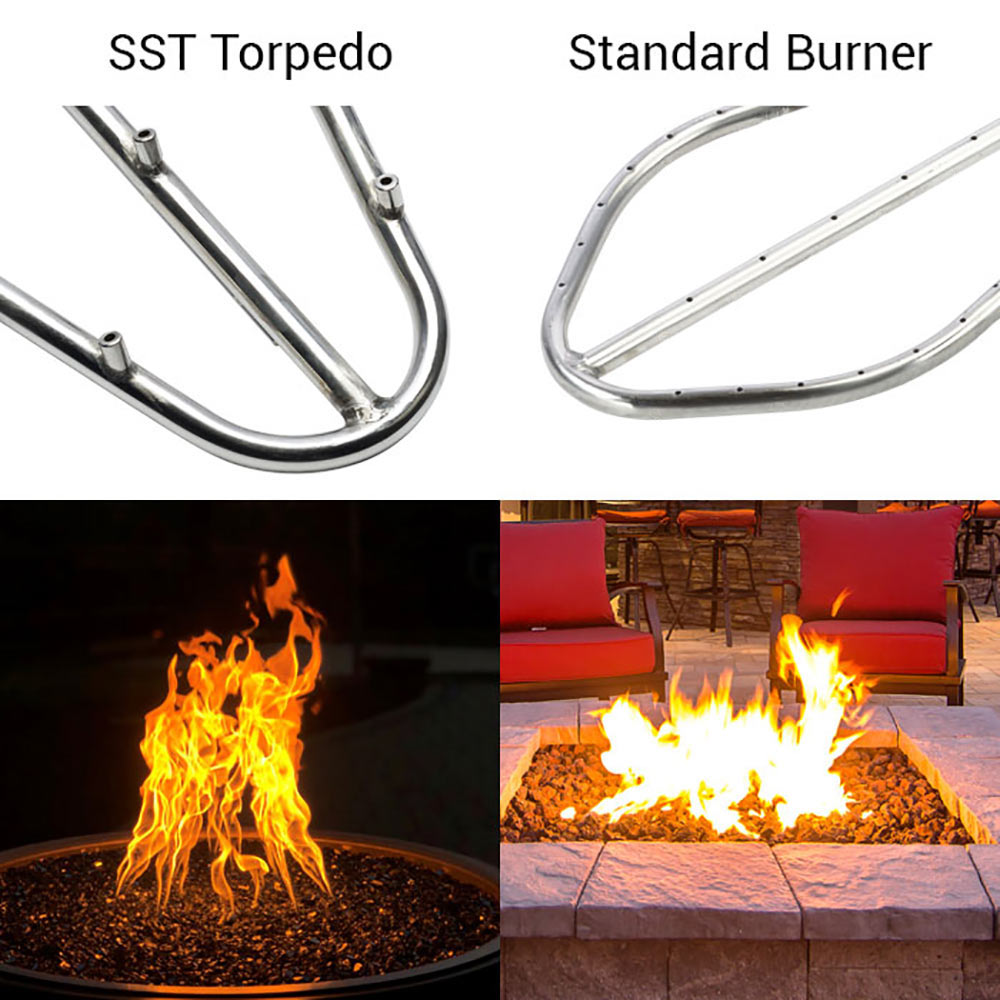

  • Torpedo Burner - Uses an innovative nozzle design to provide a taller flame
    • Product Description

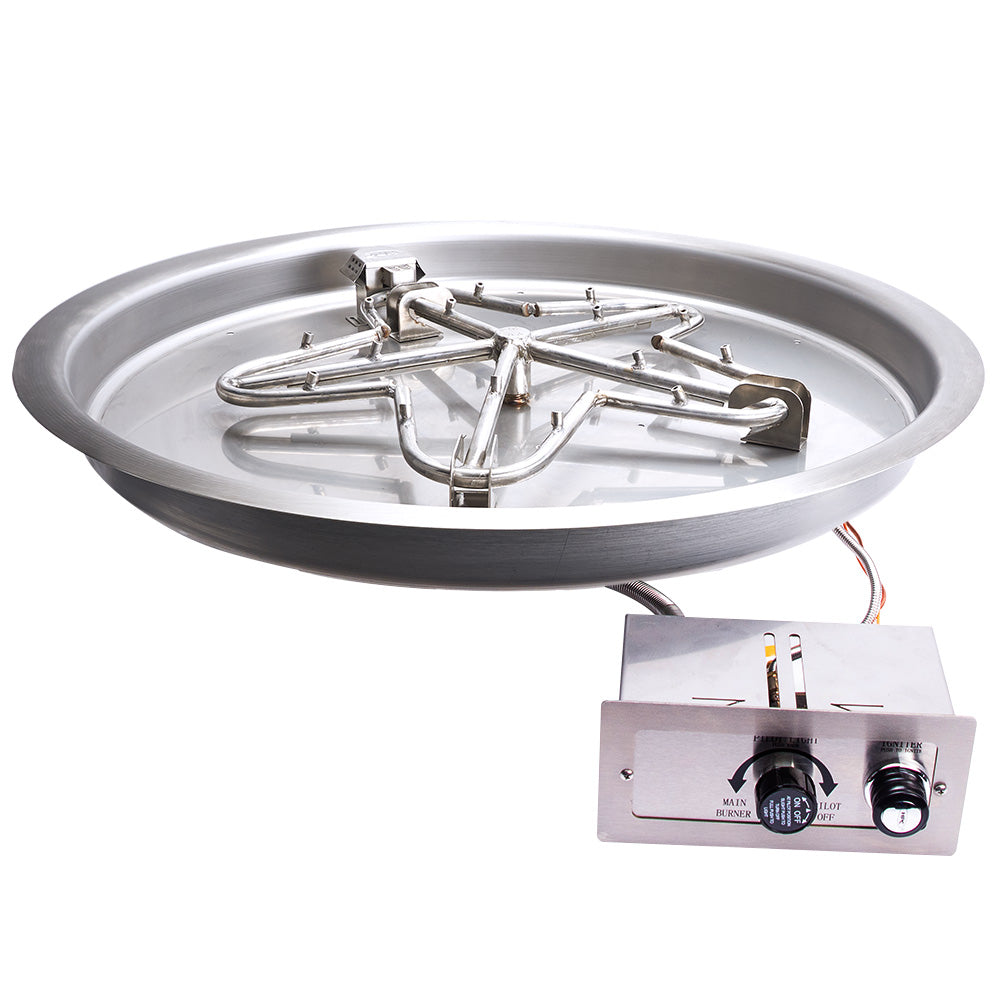

    The HPC Fire Penta FPPK Push Button Flame Sensing Gas Fire Pit Kit with Round Bowl Pan and Torpedo Burner combines high quality construction and convenience to complete your gas fire pit project. The battery powered spark ignition system gives effortless control over the fire pit with just the push of a button; the FPPK series also features an automatic flame sensor that will detect if/when the pilot is extinguished, and will automatically close the gas valve. The penta (round in FPPK13 models) shaped burner is constructed from premium 304 stainless steel; each burner features standard burner ports, a 1/2" (3/4" for HC) female gas inlet, and is neatly machine welded to produce a seamless and durable product. Burners and pans are also backed by a Limited Lifetime Warranty from HPC. The innovative Torpedo burner nozzles provide a higher flame akin to a natural wood fire.

    This burner kit is designed for both natural gas and propane applications, the burner will come assembled to the round bowl pan. Also assembled will be the necessary fittings for the sealed control box attached with a flexible gas line; propane units will include a wire mesh spider guard to keep spiders from clogging the gas line.

    The Small Tank Kit is for use with FPPK models that are rated at 90,000 BTU or fewer. The kit includes a 90° regulator, 48 inch flex hose, 24 inch flex line, L-bracket and fittings for each respective model.

    Certifications CSA/UL
    Fuel Type Natural Gas,Propane
    Product Weight 32.0 lb
    BTUs 65000
    Burner Pan Size 19-Inches
    Burner Pan Type Bowl
    Burner Shape Penta
    Burner Size 12-Inches
    Ignition Manual Spark Flame Sensing
    Material 304 Stainless Steel
    Product Depth 8.0 in.
    Product Height 14.75 in.
    Product Width 19.0 in.
    Shape Penta
    Style Contemporary
    What to Consider When Building a Gas Fire Pit

    What to Consider When Building a Gas Fire Pit:

    • Gas Supply - Before you begin designing your fire pit, first determine your gas supply
    • Both Natural Gas and Propane may be used - Supply Pressure and BTU ratings need to be regulated for both
    • For Natural Gas: Supply Pressure should be set between 3.5" - 7" Water Column
    • For Propane*: Supply Pressure should be set between 8" - 11" Water Column
    • *Do not use a burner rated for greater than 125,000 BTU with a 20-pound propane tank.
    • Fire Pit Burner - The shape and size of your fire pit burner can be choosed after determining your gas supply
    • Choose a burner kit based off of the inside dimension of your enclosure - the fire pit pan will be 6" larger than the burner to provide at least 3" between the edge of the burner and the inside edge of the pit
    • Fire Pit Pan - Included with all of HPC's preassembled fire pit kits
    • A pan can be flat or "bowl" style in order to accommodate your construction - it should be installed at least 3-4" below the top surface of your enclosure
    • The burner pan separates the air mixer from the burner in propane applications, but in all constructions it helps with water drainage and ventillation
    • Flange Extension - In many cases, the shut-off valve will be located inside the fire pit - if your enclosure walls are thicker than 3" it may be necessary to use a flange extension and a longer key
    • An external shut off valve is not required with this kit, but may be an option for added safety
    • Ventilation - For all fire pit burners, adequate ventilation is required
    • The recommended amount of ventilation is 36in² - or (2) 18in² vents on two opposing sides to create proper airflow
    • Installation Collars - Are designed to simplify the installation of a fire pit pan
    • Our flexible installation collars can bend for round enclosures and can be anchored in with concrete screws
























































































    • Fire Media - Is the final step to finishing a gas fire pit
    • Both lava rock and fire glass may be used to complete your fire pit, the choice between the two is purely aesthetic
